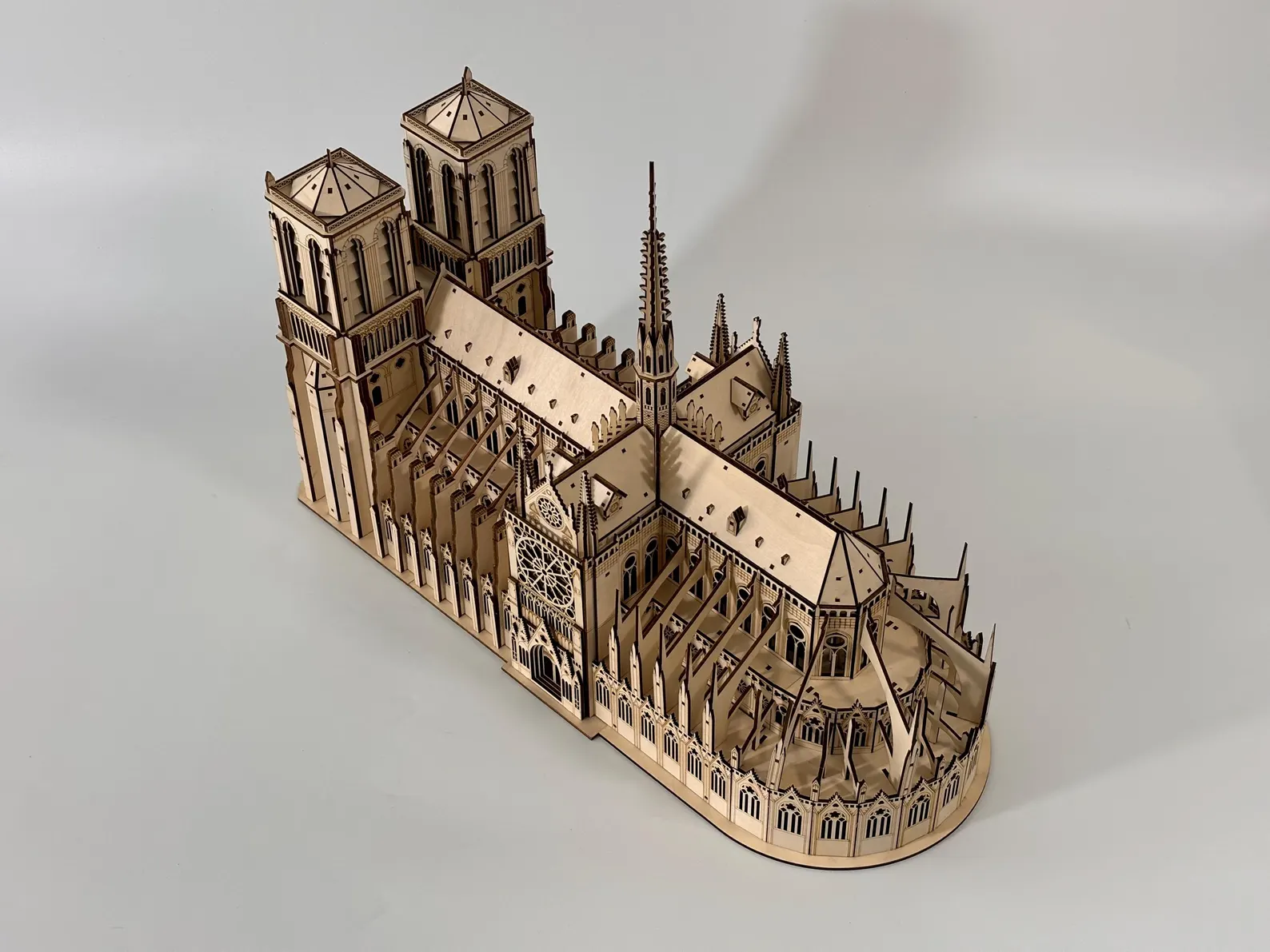

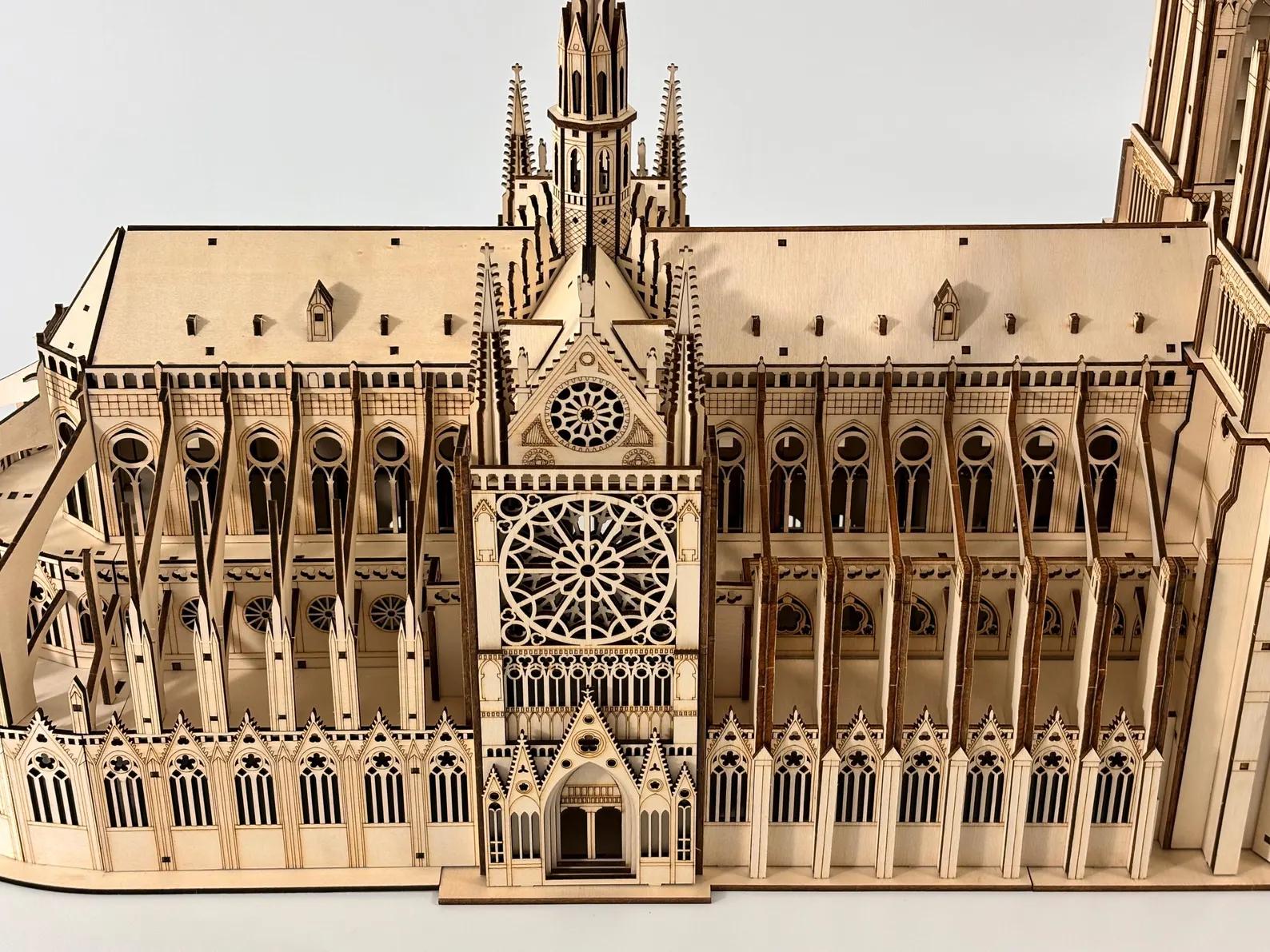

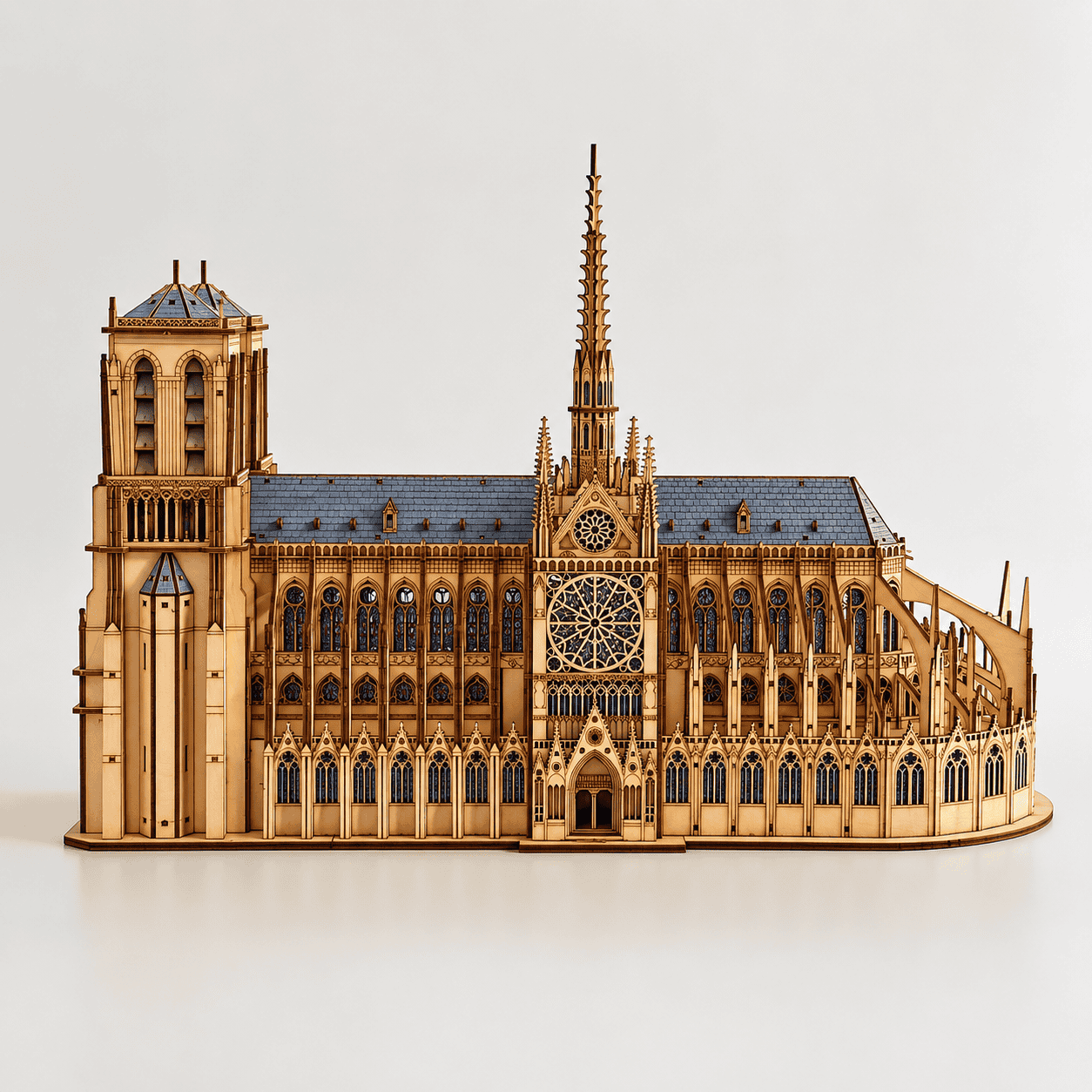

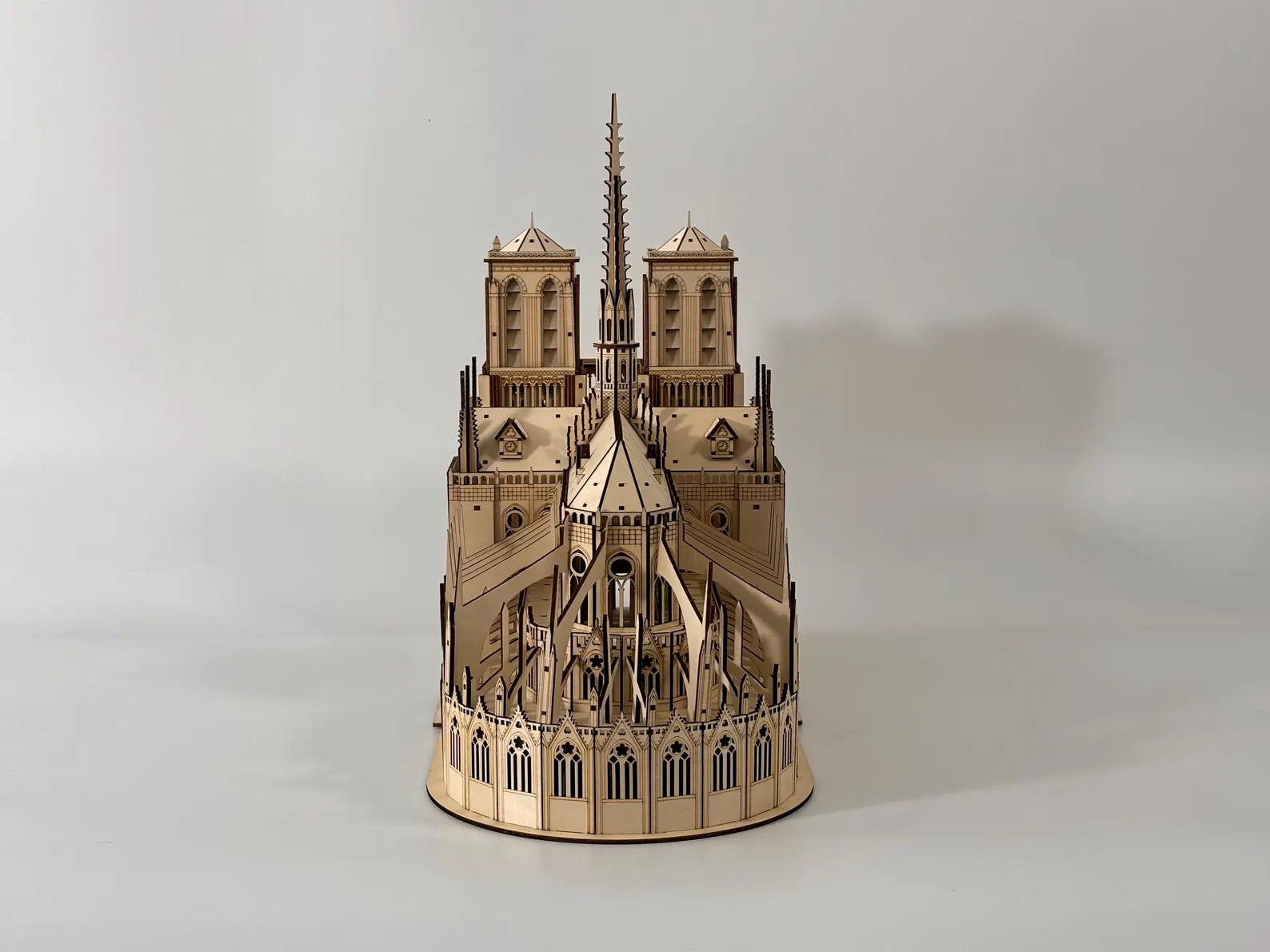

Laser Cut Notre-Dame de Paris | Wooden Cathedral Model Plans |Digital Download

📌 Please Note: Digital Download Only
This listing is for digital files only. No physical product will be shipped.
This is a DIGITAL DOWNLOAD. No physical item will be sent.
Please read carefully before purchasing to avoid any misunderstanding or disappointment.

Once purchased, you will receive digital files available for immediate download.

Please make sure you understand this is a digital product only before placing your order.
If you have any questions, feel free to contact me before purchasing.
——————————————————————–
This model includes two versions of cutting files, designed for 3 mm and 2 mm plywood.

For the 3 mm version, please ensure your laser cutter has a minimum working area of 300 × 400 mm.
For the 2 mm version, a minimum working area of 270 × 205 mm is required.

If your machine does not meet these requirements, it may not be able to cut all parts at full size.

File formats include:
*AI (Adobe Illustrator)
*DXF (Drawing Exchange Format)
*SVG (Scalable Vector Graphics)
*PDF (assembly instructions and cutting files)
———————————————————
📌 Materials Required:
For the 3 mm plywood version, the model requires 17 sheets of 400 × 300 mm and 3 sheets of 300 × 300 mm.

For the 2 mm plywood version, the model requires 17 sheets of 266 × 200 mm and 3 sheets of 200 × 200 mm.
——————————————————–
📐 Board Thickness & Scaling Advice
If you want to use a different thickness of board, you can scale the design accordingly:

For 2mm board: 2 ÷ 3 = 0.6666 → scale design down to 66.66%

For 2.5mm board: 2.5 ÷ 3 = 0.8333 → scale design down to 83.33%

For 3.175mm board: 3.175 ÷ 3 = 1.0583 → scale design up to 105.83%

For 4mm board: 4 ÷ 3 = 1.3333 → scale design up to 133.33%

Please note: If you increase the board thickness, the required stroke length (travel range) of your laser cutter will also increase accordingly, and conversely, if you use thinner material, the required travel range will decrease. However, using very thin boards is not recommended, as this will make some parts narrower and more fragile, increasing the difficulty of assembly.
——————————————————

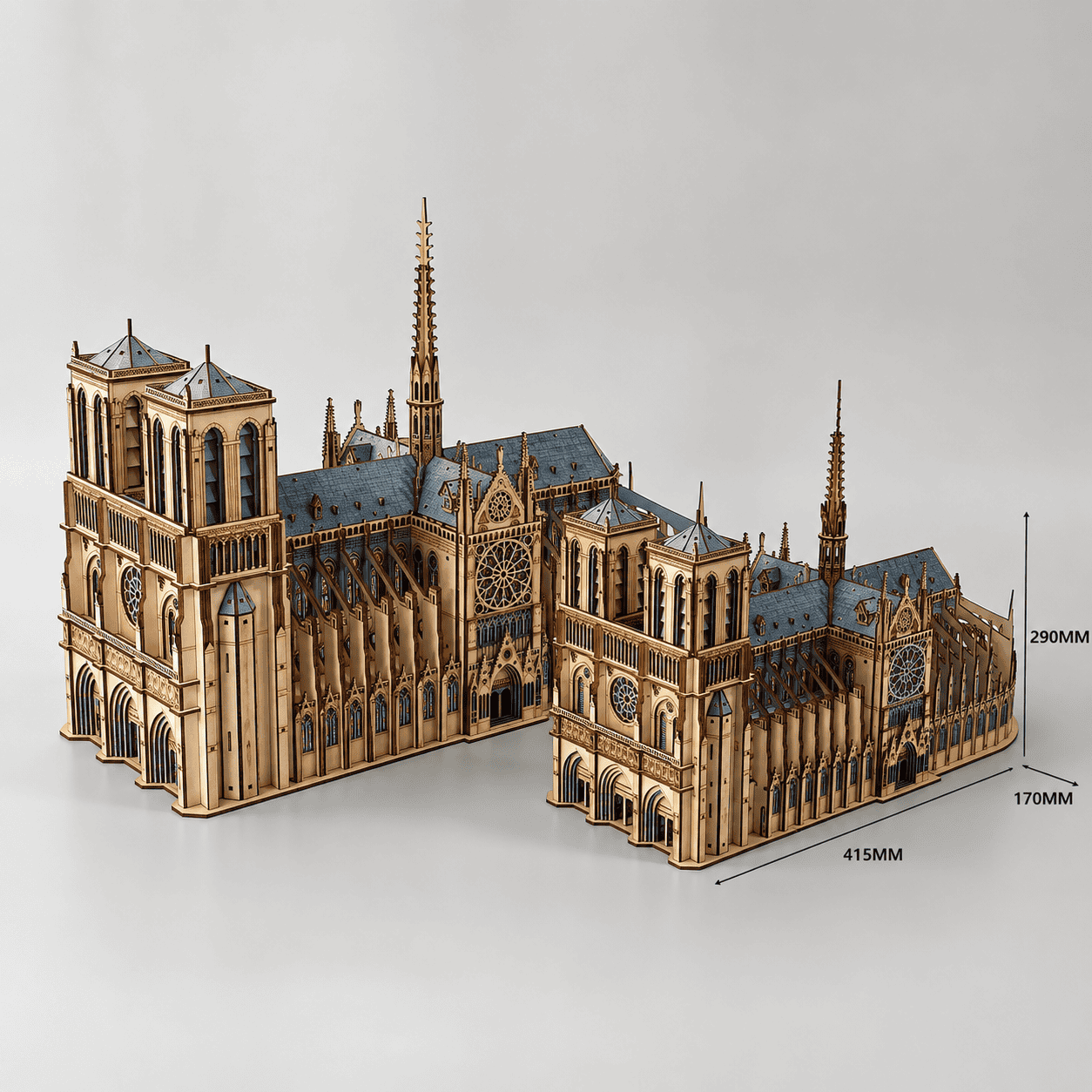

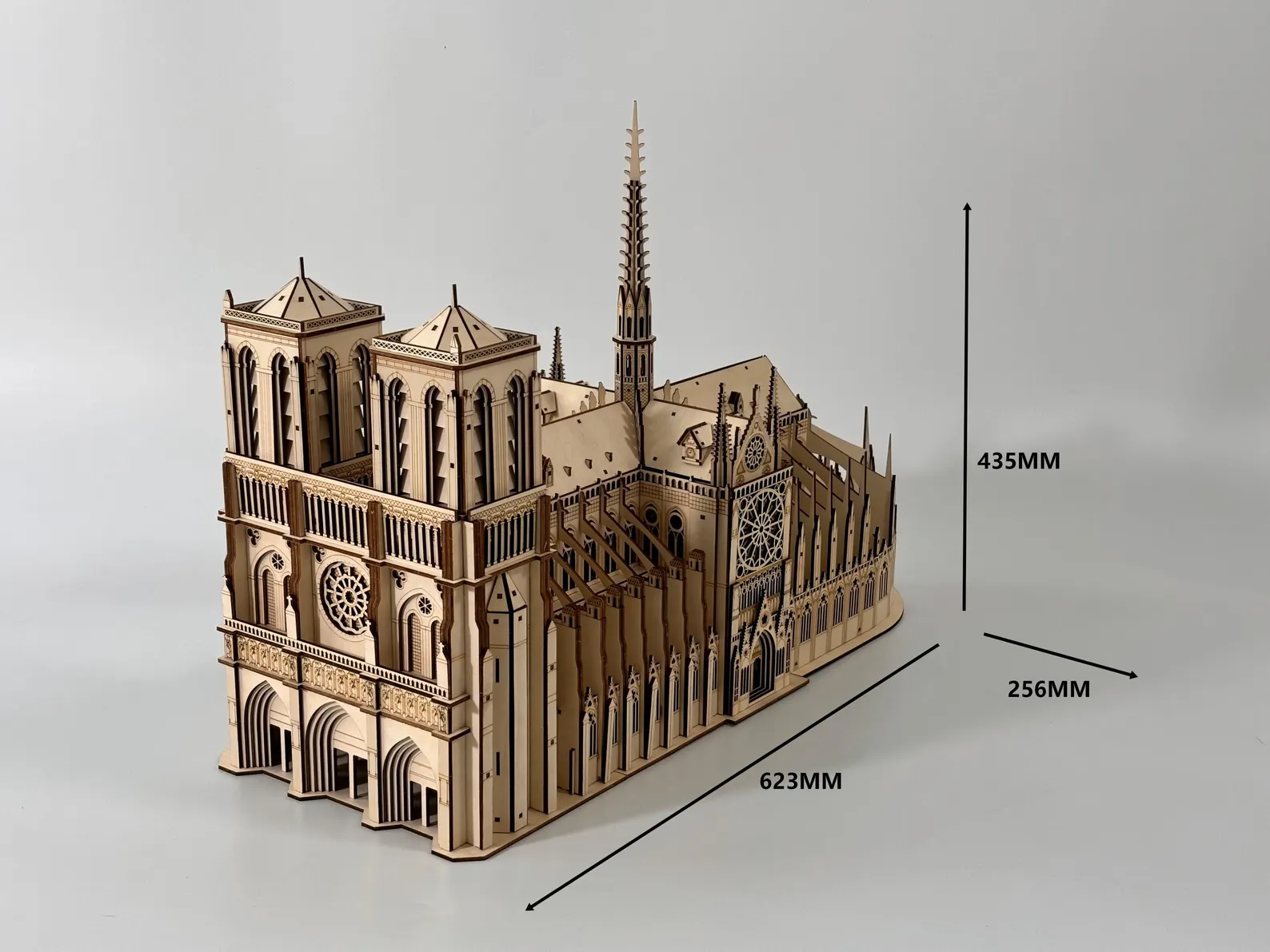

📏 Finished Model Size:

Height:256mm

Length:623mm

Width: 435 mm

These dimensions are based on 3 mm plywood thickness.
———-
Height:290mm

Length:415mm

Width: 170 mm

These dimensions are based on 2 mm plywood thickness.
—————————————————————————-
Model Prototype & History:
Notre-Dame de Paris is an iconic Gothic Catholic cathedral located on the Île de la Cité in Paris, France. It serves as the cathedral of the Archdiocese of Paris and is renowned for its grand architecture, exquisite sculptures, and long history. As a cultural symbol of France, it was damaged by a fire in 1919 and partially reopened in December 2024.
